Diamond Z10M *DISCONTINUED

FEATURES, FUNCTIONS AND SPECIFICATIONS:

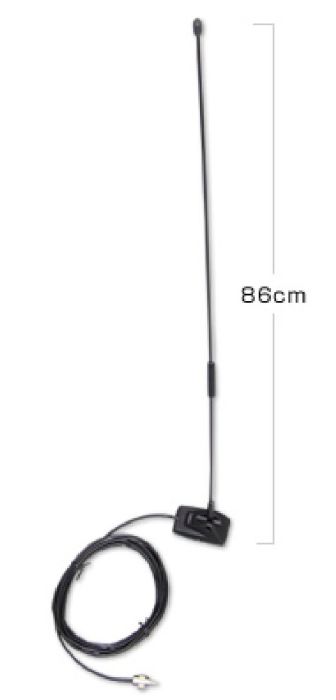

• Length: Approx. 86 cm
• Weight: 270 gram
• Frequency: 144/430 MHz (2M/70cm)
• Gain: 2.15dBi (144M Hz), 5.5dBi (430 MHz)
• Max. power rating: 60 Watt (FM)
• Impedance: 50Ω
• Connector: UHF-Male, (PL-259 )(MP removability)
• Coaxial cable: approx. 5 meter (2D-LFB-S)
• VSWR: Less than 1.5
• Type: 1/2 wave radialless (144 MHz), 2x5/8 wave radialless (430 MHz)

PACKING INCLUDES:
1 Pc of Antenna
2 Pcs of Hex Key
1 Pc of User manual in English and Japanese

AVAILABLE ACCESSORIES:

AVAILABLE SPARE PARTS:

LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.

ADDITIONAL SEARCH OPTIONS:
DiamondZ10M, Z 10 M, Z 10-M, Z 10M, Z-10-M, Z-10 M, Z-10M, Z10 M, Z10-M, Z10M

MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------
