Firestik K-74
Print page

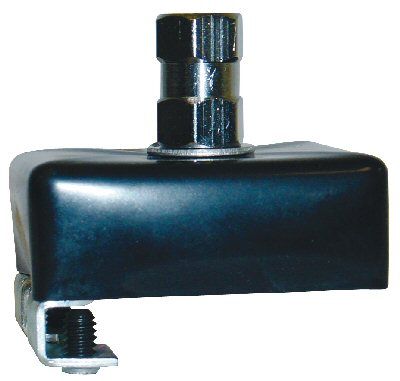

Trunk Lip Mount with K-4 Stud.
| Price End user EU | € 24,50 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 20,25 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | FIRE K74 |
| Brand | Firestik |
| Type | Firestik K-74 |
| Barcode | 716414200218 |
| Category | FIRESTIK Products |
| Sub Category | FIRESTIK CB Antennas Accessories |
| Packing Length (cm) | 15 |
| Packing Width (cm) | 13 |
| Packing Heigth (cm) | 5 |
| Packing Weight in grams | 200 |
| Packing Type | Blister-1 |
| Packing QTY in Master Carton | 24 |
| Statistical Number | 85291095 |
| Origin | United States of America |
| Attribute Label | Not Available |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
◾ The Trunk Lip bracket slides over trunk edge (normally between the trunk deck and the rear window). Two set screws are tightened from the underside to hold the bracket in place. No holes are required on the vehicle.
◾ The rearward side of the bracket has support feet with rubber bumpers to protect the vehicle finish. The mount comes complete with a K-4 antenna stud and the allen wrench to tighten the set screws. Recommended for antennas up to 92 mm (3 feet).
◾ Physically, the mount is 50 mm (2 inchwide and 63 mm (2.5 inch deep. It stands 25 mm (1 inch) above the vehicle surface without the stud mount, which will add of 53 mm (2.1 inch) when in place. The gap between the movable and unmovable areas (trunk deck and vehicle body) needs to be about 3 mm (0.100 inch) to accomodate the mount.
◾ Furthermore, the underside requires about 13 mm (0.5 inch) to accomodate the bottom of the bracket with set screws.
◾ We also offer a Trunk Lip Mount Mini-Kit that includes the mount and our 18 feet, Fire-Ring terminated coaxial cable.
◾ For Antennas up to 3 feet in length.
◾ All Mounting Hardware Included.
◾ One Year warranty against manufacturers defects.
PACKING INCLUDES:
1 Pc of Trunk Lip Mount.
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
K74, K-74, K 74.
BARCODE:
716414200218
MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: 24 Pcs
M/C Barcode: -------------
This product was added to our website (or changed) on Tuesday 25 October 2016.
For quantity pricing please contact our sales desk.
