Komunica AV-825-NF

Power Supply, Switch Mode
 Including Noise Filter
 Meter for Volt and Ampere
• Input Voltage:  90 - 125 or 200 - 240 VAC
 Output Voltage: 4 - 16 VDC
 Output Current: 25 Ampere Max

Price End user EU € 105.00 incl. VAT/BTW/TVA
Price End user Non EU € 86.78 excl. VAT/BTW/TVA
Stock: Limited stock
Avera p/n:KOMU AV825NF
Brand:Komunica
Type:Komunica AV-825-NF
Barcode:Not available
Category:KOMUNICA Products
Sub Category:KOMUNICA Power Supplies
Packing Length (cm):21
Packing Width (cm):20
Packing Heigth (cm):7
Packing Weight in grams:1505
Packing Type:Box
Packing QTY in Master Carton:Not available
Statistical Number: 85044030
Origin:Taiwan
More information: Servicedocs.com

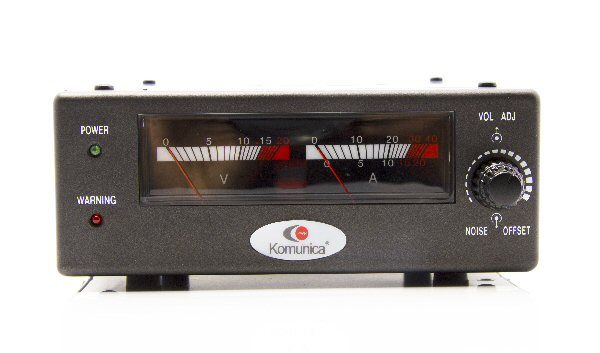

Komunica AV-825-NF Switching Power Supply
  • Komunica AV-825-NF Switching Power Supply side front view
  • Komunica AV-825-NF Switching Power Supply rear view
  • Komunica AV-825-NF Switching Power Supply side rear view

PRODUCT DETAILS


FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Input Voltage: AC 90 ~ 125 or AC 200 ~ 240 inside selectable
• Output Voltage: DC 4.0V~16V variable
• Output Voltage Regulation: Less than 1%
• Output Current: Max 25 A, continuous 22 A
• Ripple: Less than 9 mVp-p at rated load
• Dimensions (L·W·H): 165 X 147 X 55  mm
• Weight: 1.2 kg

Protection
Short Protection, Short Protection & Over Voltage Protection >16V: It will reduce the output voltage down to 0.1v Amps down to 0.4Amps and the warning led will light up. When short condition, removing it will automatic restart the power supply to normal condition.
• Over Temperature Protection: have double over temperature  protection.

PACKING INCLUDES:

1 Pc of Power Supply
1 Pc of User Manual in English and Spanish


AVAILABLE ACCESSORIES:


AVAILABLE SPARE PARTS:
AV825NF, AV-825NF, AV 825NF, AV-825-NF, AV 825 NF.

LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.

ADDITIONAL SEARCH OPTIONS:

MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------

This product was added to our website (or changed) on Tuesday 6 February 2018.

For quantity pricing please contact our sales desk.

Although the information and specifications at this internet site are presented in good faith and believed to be correct, Avera-Distributing. makes no representations or warranties as to the completeness or accuracy of the information.
