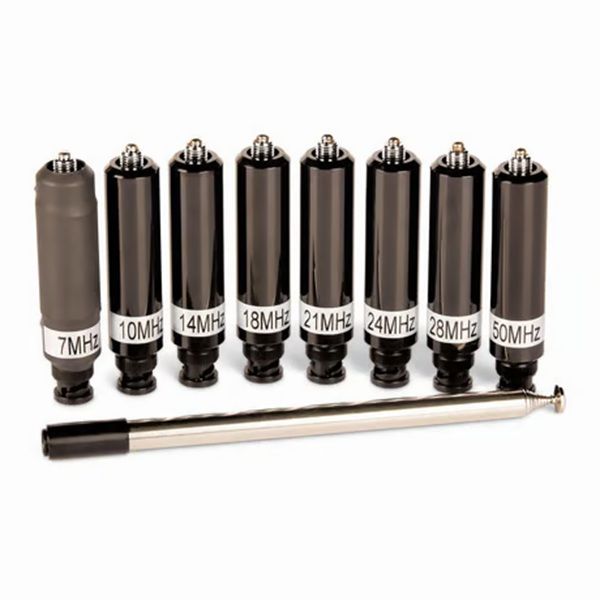

Moonraker MRW-HF100 - Complete Handheld HF Antenna Pack

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Complete Handheld HF Antenna Pack.

•  ith the current trend for portable operation these coils fit onto a BNC connector making excellent lightweight HF antennas.
• For best results you will need a counterpoise wire or earth.

Technical Specifications:

• Frequency: 7/10/14/18/21/24/28-29/50 MHz
• Type: 1/4λ Bass Loading (coil change type)
• Gain: 2.15dBi
• Impedance: 50 Ohms
• Connector: BNC-P
• VSWR: less than 1.5
• Max. Power Rating: 50W (SSB)
• Length (Element): 180mm-13480mm
• Length (7MHz-50MHZ Coil) 85mm
• Weight (Load & Element): 56g
• Weight (Coil): 7MHz: 44g | 10MHz-50MHz: 38g

Element Lengths (including coils):

• Frequency 7.1 MHz - 1155 mm
• Frequency 10.125 MHz - 1295 mm
• Frequency 14.175 MHz - 1270 mm
• Frequency 18.118 MHz - 1225 mm
• Frequency 21.225 MHz - 1340 mm
• Frequency 24.94 MHz - 1295 mm
• Frequency 29 MHz - 1200 mm
• Frequency 51.5(144) MHz - 1340(1220) mm

PACKING INCLUDES:
8 Pc of Coil
1 Pc of Telescopic Whip
1 Pc of User Manual English

AVAILABLE ACCESSORIES:

AVAILABLE SPARE PARTS:

LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.

ADDITIONAL SEARCH OPTIONS:

MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------

For quantity pricing please contact our sales desk.
