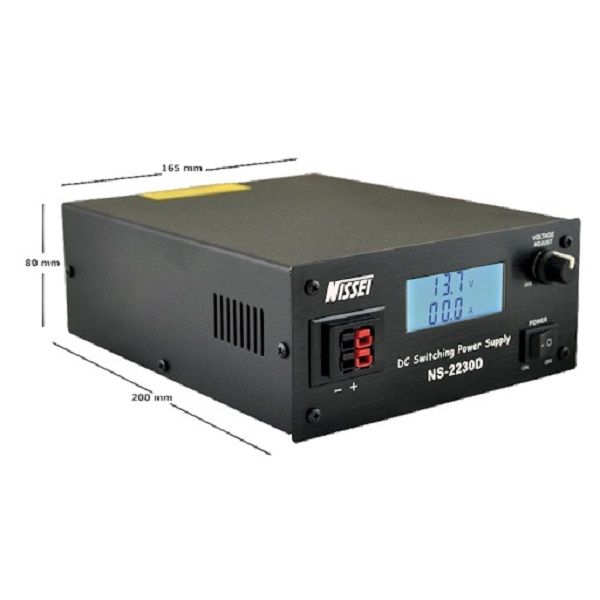

Nissei NS-2230D
Print pagePower Supply, Switch Mode
• Digital LCD Meter for Volt and Ampere
• Input Voltage: 110 or 220 VAC, select by Switch
• Input: Power Cord with 2-Pin EU/Schuko
• Output Voltage: Fixed 13,8 VDC, Adjustable 9 - 15 VDC
• Output Current: 28 / 30 Ampere
• Output terminals Front: Anderson Type
• Output terminals Rear: Binding Post Output Terminals
| Price End user EU | € 137,00 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 113,22 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | NIS NS2230D |
| Brand | Nissei |
| Type | Nissei NS-2230D |
| Barcode | Not Available |
| Category | NISSEI Products |
| Sub Category | NISSEI Power Supplies |
| Packing Length (cm) | 26 |
| Packing Width (cm) | 25 |
| Packing Heigth (cm) | 12 |
| Packing Weight in grams | 1990 |
| Packing Type | Box |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85044095 |
| Origin | Taiwan |
| Attribute Label | Not Available |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• 28A switching power supply (30A intermittent max)
• Output voltage adjustment from 9 to 15 VDC or fixed to 13.8 VDC
• Large backlit digital instrument, with simultaneous display of output voltage and absorption in Amperes.
• ˂100mVp-p ripple, protected for short-circuits, overloads and overvoltages.
• Power Supply: 220 Vac (± 10%).
• Small size 165 x 80 x 200 mm (LxHxP)
• Low weight of 1.54 Kg.
• Frontally it has: V/A instrument selector, voltage regulation,2 Anderson terminals, while on the rear: high power output terminals, forced cooling fan and AC power socket.
PACKING INCLUDES:
1 Pc of Power Supply
1 Pc of User Manual English
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
NisseiNS2230D, NS-2230D, NS 2230D, NS-2230-D, NS2230-D, NS2230D
MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------
This product was added to our website (or changed) on Wednesday 21 April 2021.
For quantity pricing please contact our sales desk.
