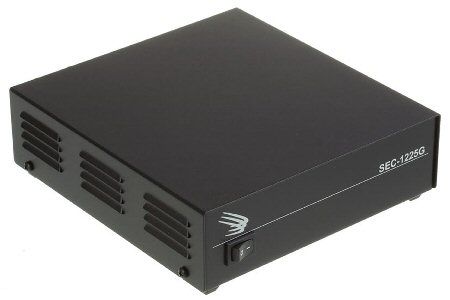

Samlex SEC-1225G

FEATURES, FUNCTIONS AND SPECIFICATIONS:
This high efficiency AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 115 or 230 Volts, 60-50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include over-current, short-circuit, over-voltage and over-temperature protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.

SPECIFICATIONS
• Model: SEC-1225G
• Input Voltage: 115-230 Vac
• Output Voltage: 13,8 VDC
• Dimensions: 190 x 180x 60 mm
• Output: 23 Amps
• Current Limiting: 27 Amps
• Fuse Rating: 4 Amps
• Weight: 1,75 Kgs

PACKING INCLUDES:
1 Pc of SEC1225G
1 Pc of AC Powercord
1 Pc of User Manual

AVAILABLE ACCESSORIES:
• 5817 = 19 inch 2U Size Dual Rackplate

AVAILABLE SPARE PARTS:

LINK(S) TO VIDEO OF THIS PRODUCT:
Links to videos to be published as soon as possible.
Feel free to send link suggestions.

ADDITIONAL SEARCH OPTIONS:
SEC1225G, SEC 1225G, SEC-1225G

BARCODE:
8718013581103
