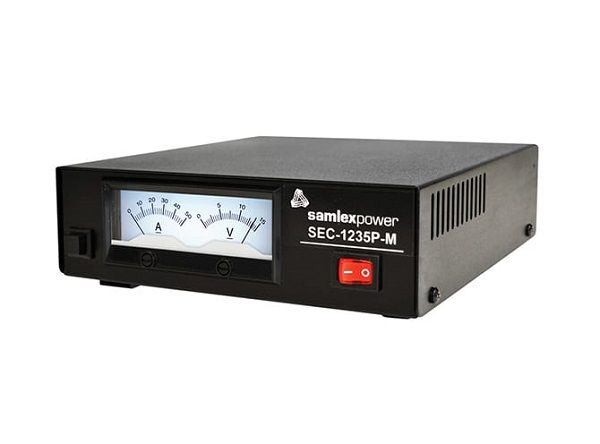

Samlex SEC-1235P-M

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Power Supply, Switch Mode
• Combined Meter for Volt and Ampere
• Input Voltage: 100-240 VAC
• Input: Power Cord with 2-Pin EU/Schuko
• Output Voltage:   13,8 VDC  Coninuous
• Output Current:  30 - 36 Ampere
• Output Rear: Binding Post Output Terminals
• Packing: Box

Features:
• Universal input: 100 to 240 VAC, 50/60 Hz
• Power Factor Corrected
• Complies with Minimum Energy Performance Standard (MEPS) for external power supplies
• Efficiency level VI
• Advanced switch-mode technology
• Reliable pwoer with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• Meter backlighting.

Specifications:
• Input Voltage (Nominal): 100-240 VAC, 50-60Hz
• Output Voltqage: 13.8 VDC
• Output Ripple & Noise: 100 mV peak to peak
• Output Curent, Continuous: 30A
• Current Limit: 36A
• Environmental Temperature Range: -20ºC to +50ºC
• Dimensions (WXDXH): 185 x 208 x 57.8 mm (7.28 x 8.19 x 2.28 in)
• Weight: 1.66kg (3.7 lb)

PACKING INCLUDES:
1 Pc of Power Supply
1 Pc of Power Cable
1 Pc of User Manual in English

AVAILABLE ACCESSORIES:
• 5817 = 19 inch  Size Dual Rackplate

AVAILABLE SPARE PARTS:

LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.

ADDITIONAL SEARCH OPTIONS:
SamlexSEC1235PM, SEC-1235PM, SEC-1235-PM, SEC-1235-P-M, SEC1235-P-M, SEC-1235P-M

MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------

This product was added to our website (or changed) on Thursday 3 february 2022.

For quantity pricing please contact our sales desk.
Although the information and specifications at this internet site are presented in good faith and believed to be correct, Avera-Distributing. makes no representations or warranties as to the completeness or accuracy of the information.
