Sirio GPA27-45

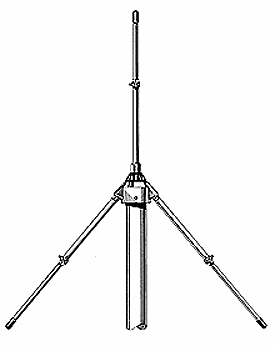

Print pageAntenna CB Base, 1/4 Wave, Whip 2680 mm, 1000 Watts.
| Price End user EU | € 59,00 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 48,76 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | SI 2100801.00 |
| Brand | Sirio |
| Type | Sirio GPA27-45 |
| Barcode | 8056182113078 |
| Category | SIRIO Products |
| Sub Category | SIRIO CB (HF) Base Antennas |
| Packing Length (cm) | 152 |
| Packing Width (cm) | 12 |
| Packing Heigth (cm) | 8 |
| Packing Weight in grams | 1330 |
| Packing Type | Bag |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85291095 |
| Origin | Italy |
| Attribute Label | Not Available |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Type: 1/4 Wave Ground Plane
• Frequency Range: 27 - 45 MHz tunable by diagram
• Impedance: 50 Ohm Unbalanced
• Radiation: Omnidirectional
• Polarization: Vertical
• Gain: 0 dB - 2.14 dBi
• Bandwith at VSWR: 2:1 2.5 MHz at 27 MHz
• Max. Power: 1000 Watts
• Connection: UHF Female
• Height: 4730 mm approx
• Weight: 1250 gram approx
• Radial Length: 2680 mm
• Mounting Mast: Ø Diameter 35 - 40 mm
PACKING INCLUDES:
1 Pc of GPA 27-45
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
GPA 27-45, GPA 27 45, GPA27-45, 2100801.00.
BARCODE:
Not available on the product
