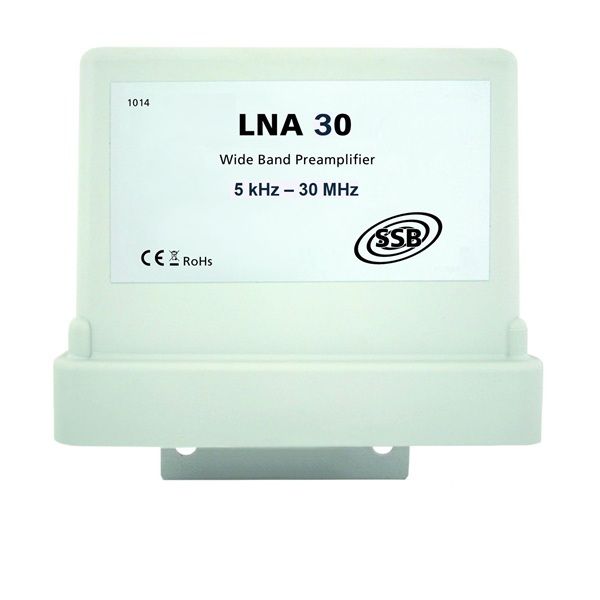

SSB LNA-30

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Broadband  (Pre-)Amplifier
• Frequency Range: 5 KHz - 30 MHz
• Amplification/Noise figure:
...@ ....10 MHz ..... 21 / 1,8 dB
...@ ....15 MHz ..... 20 / 1,7 dB
...@ ,,,..20 MHz .....19 / 2,1 dB
...@..... 30 MHz .....19 / 2,2 dB
• Connection: N-Female
• DC-Input Connection: UHF-Female (SO-239)
• Operating Voltage: 12 - 24 Volt
• Packing: Box-1

The LNA 30 is a broadband amplifier for applications in the frequency ranges VLF, LF, MW and HF.
Signals above 30 MHz are strongly suppressed by a low pass at the input of the amplifier.
The MMIC used enables a low noise figure with high large signal strength.
This amplifier is supplied with 12 to 24 V voltage via the UHF socket.
Alternatively, the device can be powered by a 24 V battery. The highest large signal strength is achieved with a 24 V voltage supply and the smallest noise figure at 12 V.
Only linear power supplies are recommended for the voltage supply of the LNA 30.
Switching power supplies generate a large interference level in the low frequency ranges and are not suitable for this application.

Technical data:


PACKING INCLUDES:
1 Pc of Amplifier
1 Pc of User Manual in English and German

AVAILABLE ACCESSORIES:

AVAILABLE SPARE PARTS:

LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.

ADDITIONAL SEARCH OPTIONS:
LNA30, LNA-30, SSB30, SSB1014, SSB-1014

MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------

For quantity pricing please contact our sales desk.
